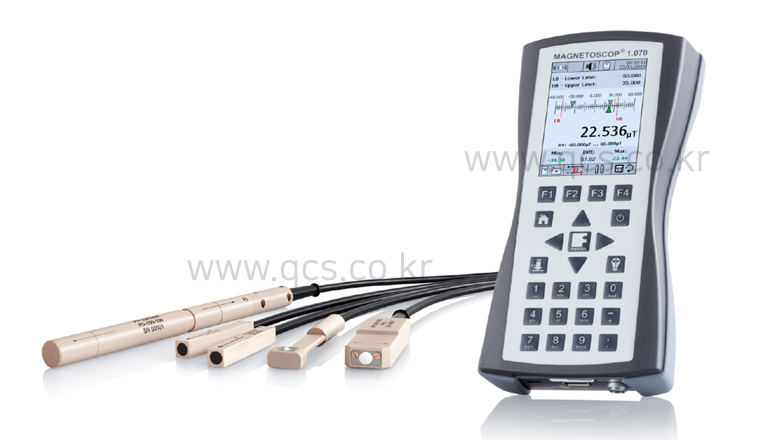

MAGNETOSCOP 1.070
휴대용 자속밀도, 투자율 측정기
| Measuring range | 0.1 nT to 1 mT(Fluxgate Probe) 1 μT to 50 mT(Hall probe) μr 1.00000 to 2.00000 |
|---|---|
| Resolution | 24 Bit ADC |
| Measurement uncertainty,field measurement | 1.5 % of the measured value Hall Probes : 1 μT to 40 mT - 2 % of the measured value 40 mT to 50 mT - 4 % of the measured value |
| Measurement uncertainty, permeability measurement | 5% of the measured value |
| Ambient temperature | 0 to +40 ℃ |
| Protection grade | IP 54 |
| Dimensions measuring instrument | 212 * 102 * 41 mm (L * W * H) |
| Display size | 3.5" |
| Weight - measuring instrument incl. batteries | 0.62 Kg |
| Battery type | 4 pcs. Mignon, AA, LR6 Alkaline or NiMH |
